Chasing a bad commit
While working on a big project where multiple teams merge their feature branches frequently into a release Git branch1, developers often run into situations where they find that some of their work have been either removed, modified or affected by someone else's work accidentally. It can happen in smaller teams as well. Two features could have been working perfectly fine until they got merged together and broke something. That's a highly possible case. There are many other cases which could cause such hard to understand and subtle bugs which even continuous integration (CI) systems running the entire test suite of our projects couldn't catch. We are not going to discuss how such subtle bugs can get into our release branch because that's just a wild territory out there. Instead, we can definitely discuss about how to find a commit that deviated an expected outcome of a certain feature. The deviation could be any behavior of our code that we can measure distinctively — either good or bad in general.
|Examples of deviations||Measurement|
|A commit that introduced a bug or a regression|
|A commit that changed the code style|
|A commit caused a benchmark's performance|
|A commit that fixed a bug|
Finding the exact point where it changed the course of our code base in terms of either of such deviations could be difficult to trace down and involves a lot of efforts if we have to do it manually.
A common problem
Let's assume an example.
We are looking for a commit that broke something in our shipment feature which was working perfectly fine until the last release. We had tagged that release commit with
v12.1.0-rc4. We also have a few tests in our test suite that can help us identify whether that commit is good or bad. Then just recently, some teams merged their feature branches that introduced about close to hundred of commits into our release branch. That's a normal practice in our project assuming we have a bunch of teams working on different feature branches constantly. Then suddenly our CI service reports a red build for the tests run on the latest release branch. CI marked that build as failed since it found that the tests related to the shipment feature were failing. That's very unfortunate and all teams are worried now. But why everyone has to worry? Because everyone have to start with the code in the release branch as the base code and build features atop meaning they would get same test failures in their feature branches, too and won't be able to merge that without a successful build on CI. Such a cascaded effect slows down the overall progress and morale of the teams, right?!
Because we are the team responsible for the shipment feature, we need to fix those failing tests in the release branch. But everyone in our team is pretty sure that it's not our fault because the overall shipment feature was working until we released
v12.1.0-rc4. But anyway we need to triage and fix it, right? So we start with the
HEAD commit in the latest release branch. We confirm that the shipment feature breaks on it by running our test suite. Then we keep checking out to each of the previous commits in the Git history until we find a commit where our test suite passes. In a worst case scenario, that successful commit could be the one which is tagged with
v12.1.0-rc4 — meaning we have to checkout to about hundred commits one-by-one to find a good commit. The commit made just after that good commit in the commit history tree is what we can refer a bad commit.
If we take such a route, we would end up spending unimaginable hours (or days) chasing down a bad commit. That's definitely not an ideal solution.
A bunch of solutions!
So what options do we have?
- Option 1: We can equally divide the commits between a well known good commit and a bad commit among the team members and manually checkout to each commit accordingly to reduce the overall efforts. This excercise suits that popular saying, work as a team!
- Option 2:
The Nerd Johnin our team has a clever idea to implement a fancy tool that would utilize a binary search algorithm that automatically keeps dividing the commits equally by running the test suite until it finds a commit which was the first bad commit in the commit history. We all know, John's so nerdy!
- Option 3: Use a readymade tool
git bisectwhich comes built-in with
The Nerd Johncould have been end up building — but only in its half-baked form.
git bisect: a good solution
git bisect command uses an efficient binary search algorithm to help us find a commit that we are looking for. It requires us to specify a bad commit and at least a good commit (can specify many good commits though to further narrow down the search). It then keeps bisecting2 the commits between the specified bad and good commits until it finds the first commit in the commit history that caused the deviation3.
git bisect command can run in either manual (interactive) mode or in a fully automated mode. Before each iteration, bisect needs to know whether the given commit is a bad commit or a good commit.
Let's try the interactive mode first.
We need to start a git bisect session in a clean Git directory.
$ git bisect start
Then we need to tell the SHA of a bad commit to git bisect. We can also use the branch name or a tag name pointing to a commit if we want. Let's assume that in our release branch (which is master branch), the latest commit is a bad commit. Therefore, we can specify that the current
HEAD is a bad commit.
# Are we inside the correct branch? $ git branch bug/shipment-leg-misconfigured feature/shipment-calculator * master production # Confirm that the relevant tests are failing here. $ rspec spec/models/shipment_spec.rb spec/controllers/shipments_controller_spec.rb ... Finished in 53.9 seconds 238 examples, 3 failures # Mark the HEAD commit as a bad commit. $ git bisect bad HEAD # or simply `git bisect bad`
Now let's find the SHA or tag of a good commit that we are aware of.
# Find the SHA or tag of a commit that we assume is a good commit. $ git log --oneline --graph # Checkout to that commit or tag. # Note that we are still in the middle of a bisect operation, # but it is perfectly fine to execute other git commands such as # `git checkout`. $ git checkout v12.1.0-rc4 # And ensure that the relevant tests are passing over there. $ rspec spec/models/shipment_spec.rb spec/controllers/shipments_controller_spec.rb ... Finished in 45.8 seconds 221 examples, 0 failures
Because we are already checked out to a good commit, we can simply ask git bisect to mark the current commit as a good commit.
# Because we have already checked out to `v12.1.0-rc4` tag, # therefore, instead of running `git bisect good v12.1.0-rc4`, # we can just run — $ git bisect good Bisecting: 46 revisions left to test after this (roughly 6 steps) [02b0b29] Fix: Flicker in insights graph on dashboard
Notice the output of
git bisect good command above. It automatically checked out to a commit which is in the middle of the range of about 91 commits between the
HEAD of master branch (bad) and
v12.1.0-rc4 (good) commits. That's what bisecting is in general — dividing something in the middle! That output also shows that it would need just about 6 more steps to find out a culprit commit. Ain't that awesome?!
We can use
git bisect visualize or
git bisect view to see the boundary commits and the current HEAD commit.
$ git bisect view --oneline * 5b91861 (master, origin/master) Merge 'feature/new-logistics-reports' branch into 'origin/master' branch * ... * ... * 02b0b29 (HEAD) Fix: Flicker in insights graph on dashboard * ... * ... * 4748ff8 (v12.1.0-rc4) Release v12.1.0-rc4
Let's check if the relevant tests pass or fail here and mark the current HEAD as either good or bad accordingly.
$ rspec spec/models/shipment_spec.rb spec/controllers/shipments_controller_spec.rb ... Finished in 42.8 seconds 221 examples, 0 failures
Tests are passing meaning it's a good commit. So let's tell git bisect the same.
$ git bisect good Bisecting: 23 revisions left to test after this (roughly 5 steps) [794197a] Update profile mutation to allow changing middle name
We keep doing this exercise 5 more times until
git bisect reports us the first bad commit.
# Tests failed on this commit, so mark it as a bad commit. $ git bisect bad Bisecting: 11 revisions left to test after this (roughly 4 steps) ... # This is also a bad commit. $ git bisect bad Bisecting: 5 revisions left to test after this (roughly 3 steps) ... # Same, it's a bad commit as well. $ git bisect bad Bisecting: 2 revisions left to test after this (roughly 1 step) ... # Tests are passing here, so mark it as a good commit. $ git bisect good Bisecting: 0 revisions left to test after this (roughly 1 step) ... # Tests are failing, so mark that as a bad commit! $ git bisect bad efd1083e15670fe6443e5b569b3c0be0e39e212d is the first bad commit commit efd1083e15670fe6443e5b569b3c0be0e39e212d Author: Brandon Ross <firstname.lastname@example.org> Date: Fri Jun 19 14:02:09 2020 -0400 Change the courier service provider to DHL
There's that bad commit we were looking for! Thanks to
git bisect — only in about 6 steps, we found the culprit commit which introduced a bug due to which our shipment feature started failing afterwards in our release branch. Now we can have a chat with Brandon who had pushed that commit and see if we can fix the bug that broke the shipment feature and made our poor CI cry!
Since we are done here, let's cleanup the bisect session as a final step. This way, git will return back to the original HEAD before the bisect session was started.
$ git bisect reset Previous HEAD position was efd1083 Change the courier service provider to DHL Switched to branch 'master' Your branch is up to date with 'origin/master'.
Fully automated bisect
Until now, we have been determining ourselves whether a commit is a good commit or a bad commit and were telling the same to
git bisect accordingly. That means our manual intervention was needed all the times.
Cannot we do any better?
Yes, we can!
git bisect run can execute any command or script. If that command or script exits with code
git bisect would mark the current commit as a good commit. On the other hand, if that command or script exits with any other code between
127 (inclusive) except 1254 then
git bisect would mark the current commit as a bad one.
And we already know that once a commit is marked as either good or bad,
git bisect bisects and checks out to the middle commit of the current range and would keep executing the same command or script we provided to
git bisect run until it finds out the culprit commit.
Let's try it to understand it better.
# We start the bisect session by providing both good and bad # commits at the same time. $ git bisect start HEAD v12.1.0-rc4 Bisecting: 46 revisions left to test after this (roughly 6 steps) [02b0b29] Fix: Flicker in insights graph on dashboard # Then we provide our test script "rspec spec/..." that exits # with 0 when tests pass otherwise exits with a non-zero code # when tests fail. $ git bisect run rspec spec/models/shipment_spec.rb spec/controllers/shipments_controller_spec.rb ... Finished in 42.8 seconds 221 examples, 0 failures Bisecting: 23 revisions left to test after this (roughly 5 steps) running rspec ... Bisecting: 11 revisions left to test after this (roughly 4 steps) running rspec ... Bisecting: 5 revisions left to test after this (roughly 3 steps) running rspec ... Bisecting: 2 revisions left to test after this (roughly 1 step) running rspec ... Bisecting: 0 revisions left to test after this (roughly 1 step) running rspec ... efd1083e15670fe6443e5b569b3c0be0e39e212d is the first bad commit commit efd1083e15670fe6443e5b569b3c0be0e39e212d Author: Brandon Ross <email@example.com> Date: Fri Jun 19 14:02:09 2020 -0400 Change the courier service provider to DHL
That's it! This time, surprisingly we didn't need to intervene at all.
git bisect found us the culprit commit on its own (see the highlighted line above).
Comparing this to our initial solution in which we were manually checking out to each of those 91 commits ourselves — isn't this a far better solution?!

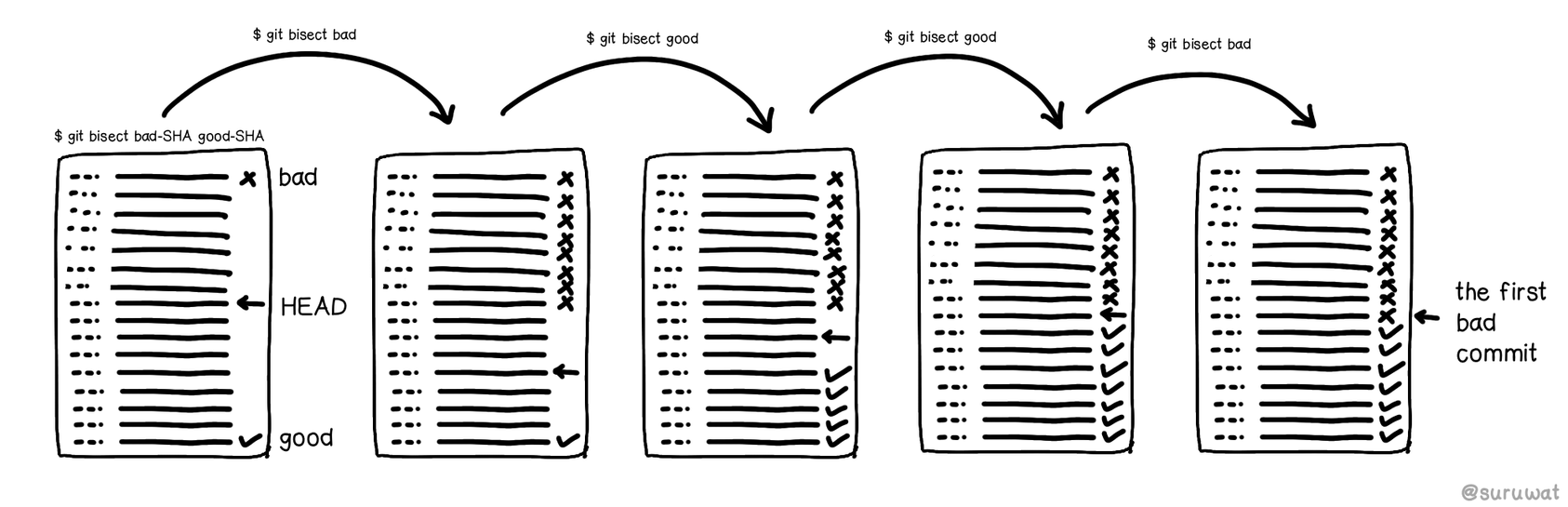

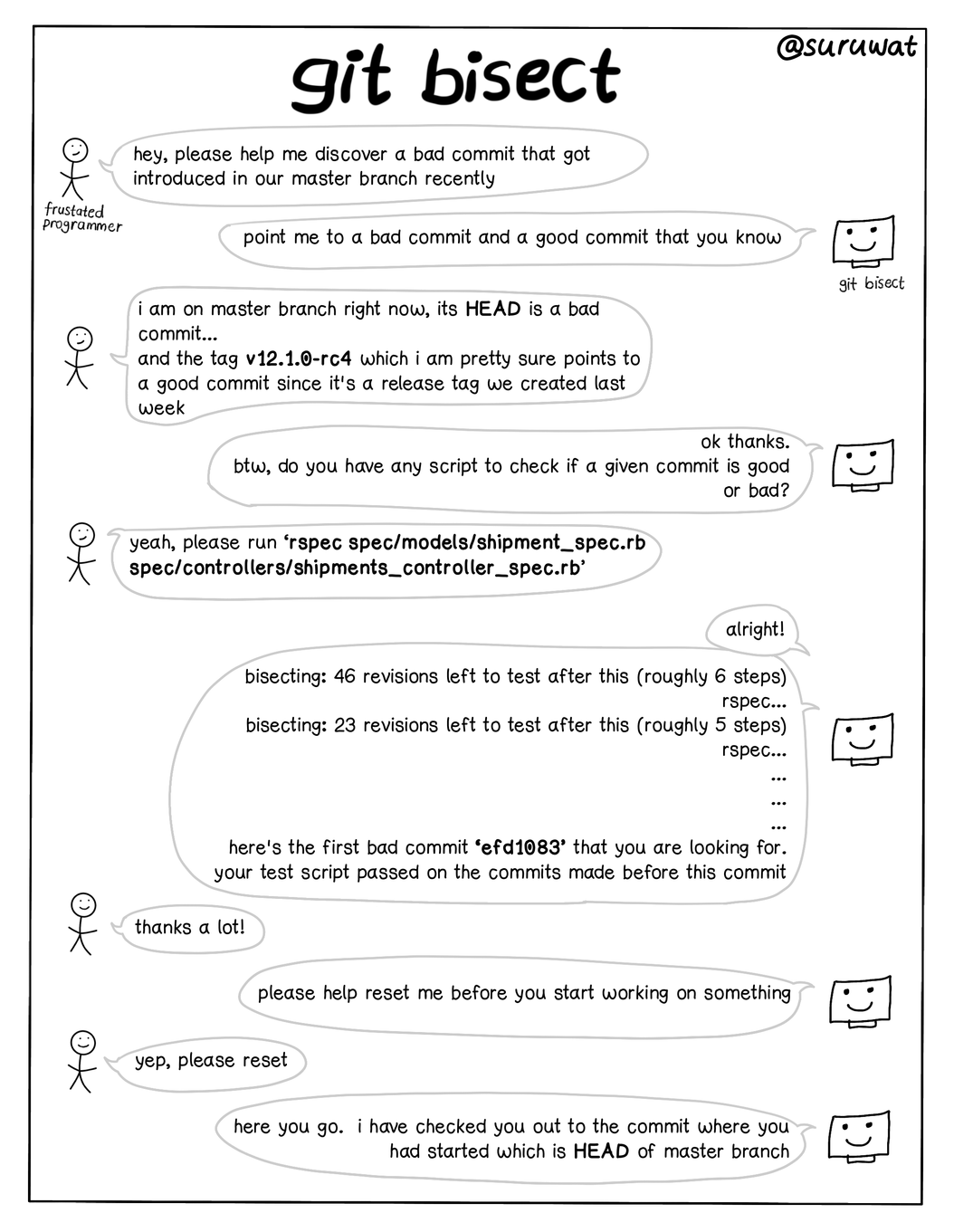

Here's a zine that captures this bisection flow in a simplified manner.
Sometimes, marking a commit as
good doesn't make sense. We may want to say
fast, etc. depending on the deviation we are looking for.
In such cases, we can define these terms and use them instead of
good for marking the commits accordingly.
$ git bisect start --term-new slow --term-old fast ... $ git bisect terms Your current terms are fast for the old state and slow for the new state.
That's it for now, folks. Give a read to the documentation of
git bisect here to know more about it.
Until then, happy bisecting!
for the sake of simplicity, let's assume it's the
master branch going forward in this whole article
splits in the half, right?
a deviation could be a bug, a regression, a fix, some slowdown in a feature's performance, etc.
125 is a special code which
git bisect uses to skip the current commit assuming it cannot be tested
